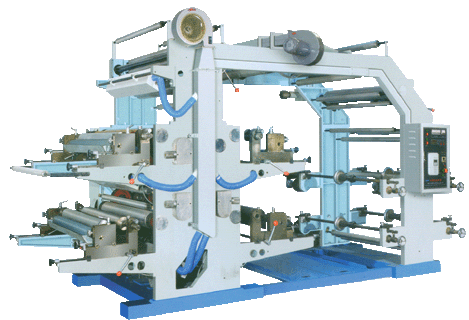

| Flexography printing press |
| |
 |
Content: |
|
|
Stop the machine automatically at the set quantity or when the material is cut off. Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting. The printing ink is spread by the kunrled cylinder with even ink colour. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops. 3600continuous and adjustable longitudinal register device. The imported frequency control of motor speed adapts to different printing speeds. There are Inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Model XY Series Flexible Convex Press Machine
Model of Machine YT4600 YT41000
Max.Width of Printing Material 600mm 1000mm
Max.Printing Width 560mm 960mm
Length Range of Printed Product 191-914mm 191-914mm
Max.Diameter of Roll Material 450mm 450mm
Printing Speed 5`50m/min 5`50m/min
Thickness of Plate(including Two-sided Glue Paper) 2.38mm 2.38mm
Total Power 10.87kw 14.37kw
Weight of Machine 3000kg 4000kg
Overall Dimensions 4200X1600X2400mm 4200X2000X2400mm
|
|
|
| |
