| DC-DC CONVERTERS IAS-1W |
| |
 |
Content: |
|
|
DC-DC Converter IAS 1W/2W/3W/4W Series,
Isolated & Regulated, Double Output
Fixed input isolated & regulated 1W dual output SIP package dc/dc converter, superior dynamic characteristic, it can offer tightly regulated dual voltage power. They are ideally suited for such situation that prefers stability dual voltage power for circuit.
fixed input: 5/ 12VDC
I/O-Isolation: 1000VDC
dual output: }5/}9/}12/}15VDC
package style: SIP

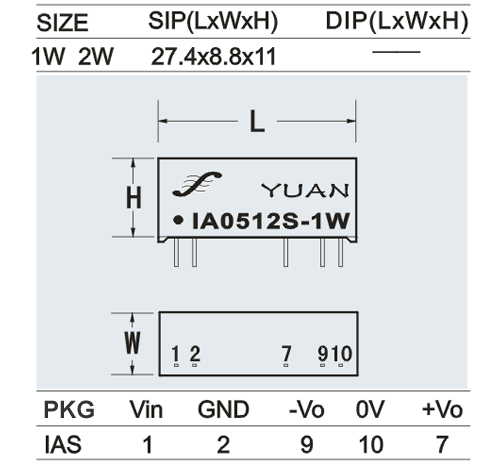

mechanical: 27.5*9.5*12.0mm
operating temperature: -40 to +85?
output voltage accuracy <}3%
line regulation < 0.25%(for input voltage change of 1%)
MTBF > 3.5 Million hours (25?)
RoHS compliant.
|
|
|
| |
