Subject: |
|
 |

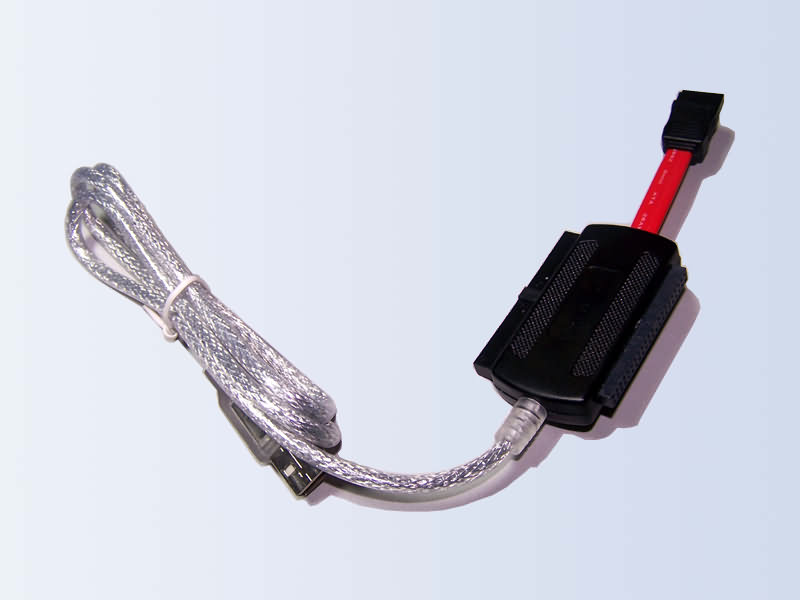

| USB2.0 to IDE/SATA cable |
| |
 |
Content: |
|
|
1) Compliance with Universal Serial Bus specification rev. 2.0.
2) Compliance with Gen1i of Serial ATA II Electrical Specification 1.0
3) Support SATA Spread-Spectrum Clock Receiver
4) Support SATA II Asynchronous Signal Recovery (Hot Plug) feature
5) Compliance with USB 2.0 electrical specification
6) Support USB High-Speed and Full-Speed Operation
7) Compliance with USB Mass Storage Class, Bulk-Only Transport Specification
8) Support ATA/ATAPI Ultra DMA Mode 0, 1, 2, 3, 4,5
9) Support ATA/ATAPI Multi-Word DMA Mode 0, 1, 2
10) Support ATA/ATAPI PIO Mode 0, 1, 2, 3, 4
11) Support ATA/ATAPI PACKET command set
12) Support ATA/ATAPI LBA48 addressing mode
13) Support dual LUN (Logic Unit Number) with automatically master/slave enumeration
14) Support 12MHz external crystal
15) Support external NVRAM for Vender Specific VID/PID, Manufacture, Product String of USB Device Controller
16) Support ATA/ATAPI device power down control in USB Suspend mode
17) Embedded 3.3V to 1.8V voltage regulator
18) Single power 3.3V power supply
19) Support booting operation from external hdd
|
|
|
| |
| 2013/8/25 |
| |
 |
