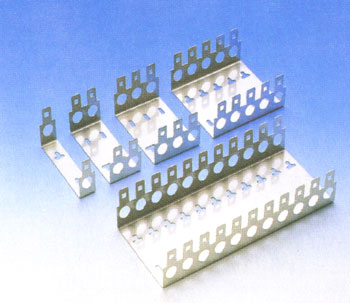

| (KT-MF-XX-XX) Mounting Frame |
| |
 |
Content: |
|
|
For 10 Pair Module:
KT-MF-10-10: 10 Pair (L=22.5mm W=105mm H=50mm)
KT-MF-10-20: 20 Pair (L=45mm W=105mm H=50mm)
KT-MF-10-30: 30 Pair (L=67.5mm W=105mm H=50mm)
KT-MF-10-50: 50 Pair (L=112.5mm W=105mm H=50mm)
KT-MF-10-60: 60 Pair (L=135mm W=105mm H=50mm)
KT-MF-10-80: 80 Pair (L=180mm W=105mm H=50mm)
KT-MF-10-100: 100 Pair (L=225mm W=105mm H=50mm)
KT-MF-10-110: 110 Pair (L=247.5mm W=105mm H=50mm
KT-MF-10-160A: 160 Pair (L=360mm W=105mm H=50mm)
KT-MF-10-160B: 160 Pair (L=360mm W=105mm H=70mm)
KT-MF-10-210: 210 Pair (L=472.5mm W=105mm H=70mm)
KT-MF-10-310: 310 Pair (L=697.5mm W=105mm H=70mm)
For 8 Pair Module:
KT-MF-8-8: 8 Pair (L=22.5mm W=85mm H=52mm)
KT-MF-8-16: 16 Pair (L=45mm W=85mm H=52mm)
KT-MF-8-24: 24 Pair (L=67.5mm W=85mm H=52mm)
KT-MF-8-32: 32 Pair (L=90mm W=85mm H=52mm)
KT-MF-8-40: 40 Pair (L=112.5mm W=85mm H=52mm)
KT-MF-8-80: 80 Pair (L=225mm W=85mm H=52mm)
KT-MF-8-88: 88 Pair (L=247.5mm W=85mm H=52mm)
For 5 Pair Module:
KT-MF-5-5: 5 Pair (L=22.5mm W=55mm H=50mm)
KT-MF-5-10: 10 Pair (L=45mm W=55mm H=50mm)
KT-MF-5-15: 15 Pair (L=67.5mm W=55mm H=50mm)
KT-MF-5-25: 25 Pair (L=112.5mm W=55mm H=50mm)
KT-MF-5-30: 30 Pair (L=135mm W=55mm H=50mm) |
|
|
| |
