Subject: |
|
 |
| GV-1480 Video Capture Card(Software GV V8.2.0) |
| |
 |
Content: |
|
|
Specification
Input Type
DVI : DVI x 2 (one for 16 video, one for 16 audio)
D-Type: DB15 x 2 (for video) ; DB9 x 2 (extension card for audio)
Video Input(s)
16 Cams
Audio Input(s)
16 Channels
TV Output RCA Connector x 1
Recording Rate At 320 X 240 Resolution
480 fps (NTSC), 400 fps (PAL)
Display Rate
480 fps (NTSC), 400 fps (PAL)
Video Resolution
Full D1, Half D1, CIF
Compression Format
Geo MPEG4, Geo MPEG4 (ASP), Geo H264, Geo H264 V2
GV-NET Card Support
Yes
GV-NET/IO Card Support
Yes
GV-Hybrid DVR Card Support Yes

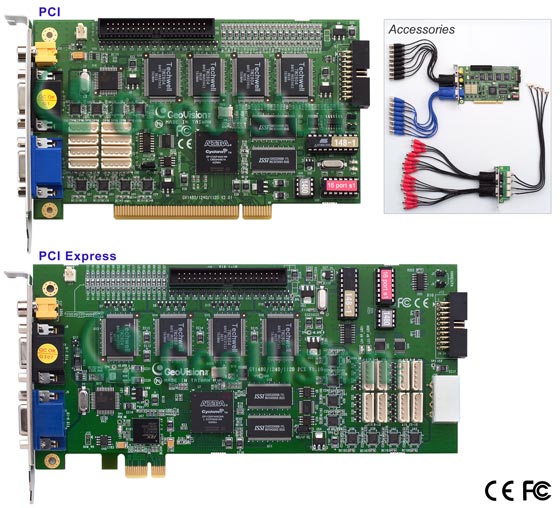

Installation Guide
DVI
D-Type
PCI Express
Dimension
DVI: 165 (W) x 95 (H) mm
D-Type: 170 (W) x 95 (H) mm
D-Type PCI Express: 212 (W) x 99 (H) mm
Note: GV-1480 is currently not compatible with VIA series and ATI series chipset motherboards.
System Requirements
OS Supported
Windows 2000 / Windows XP / Windows Server 2003 / Windows Vista
CPU
Pentium 4-3.0GHz with Hyper-threading or above
RAM
2 x 512 MB dual channel
HDD
250 GB or above (recommended)
VGA
ATI Radeon 9550 or above NVIDIA 6200 or above
DirectX
9.0 or above
|
|
|
| |
