Subject: |
|
 |
| Single Output Switching Power Supply 100W |
| |
 |
Content: |
|
|

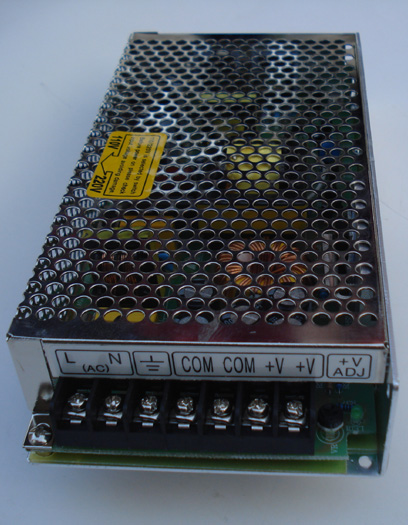

Single Output Switching Power Supply 100W
High efficiency, high reliability, low cost
AC input range selected by swith
100% full load burn-in test
Protections: Short circuit/Over load/Over voltage
Cooling by free air convection
Fixed switching frequency at 83KHz
2 year warranty
Specifications:
INPUT
Voltage range: 88-132 VAC/176-264VAC 47-63 Hz; Selected by switch 248-370VDC
AC Current: 3.15A/115 V 1.5A/230 V
Inrush Current: Cold start 30A/115V 60A/230V
OUTPUT
DC Voltage: 5V Rated Current: 20A
DC Voltage: 7.5V Rated Current: 13.5A
DC Voltage: 12V Rated Current: 8.5A
DC Voltage: 15V Rated Current: 6.7A
DC Voltage: 24V Rated Current: 4.5A
DC Voltage: 27V Rated Current: 3.5A
DC Voltage: 48V Rated Current: 2.2A.
More Product Features ?
|
|
|
| |
