| 60W Single Output Switching Power Supply |
| |
 |
Content: |
|
|

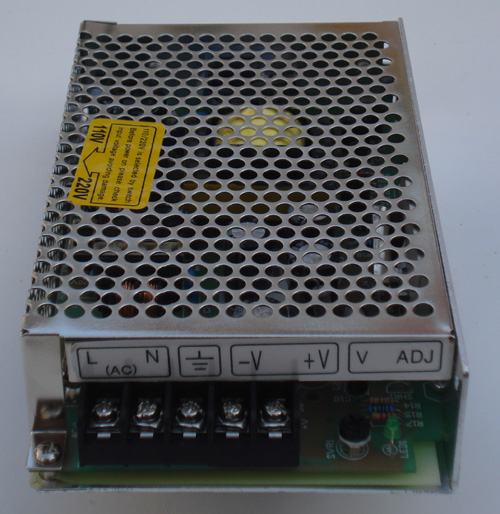

60W Single Output Switching Power Supply
Universal AC input: Full range
Protections: Short circuit/overload/over voltage/over temperature
100% full load burn-in test
Low cost, high reliability
2 year warranty
Size: 159*97*38mm
Weight: 0.51kg
AC input voltage range: 85-264VAC/120-370VAC
AC inrush current: Cold start 20A/115V, 40A/230V
DC adjustment range: 10% above or below rated output voltage
Overload protection: 105%-150%, hiccup mode, auto recovery
Setup, rise, hold up time: 300ms, 50ms, 90ms/230VAC at full load
Working temperature and humidity: -10C-+60C, 20%-90 %RH
Model: S-60-5, S-60-12, S-60-15, S-60-24
DC output voltage, Current range: 5V, 0-12.0A, 12V, 0-5.0A, 15V, 0-4.0A, 24V, 0-2.5A
Voltage tolerance: 2%, 1%, 1%, 1%
Ripple&Nois: 120mV, 120mV, 150mV, 150mV
Efficiency: 73%, 76%, 77%, 79%.
|
|
|
| |
