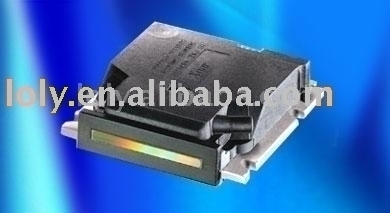

| Xaar 128 head |
| |
 |
Content: |
|
|
Detailed Product Description
Physicall Attributes Xaar 128/200dpi
Quality
print resoluiton 200 dpi
Nozzle density(nozzles per inch) 185dpi
Drop volume 80PL
Drop movement accuracy 1¡ã
Speed
Typical firling frequency 4.25 kHz
Line speed 540mm/s
Physical specification
Dimensions(W¡ÁD¡ÁH) 37.2mm¡Á40.8mm¡Á11.33mm
Print swathe width 16.1mm
Active nozzles 128
Printhead weight(dry) 15.5g
Print distance 1mm
Ink type Oil, Solvent, Dye Sub.
Typical life 4 ¡Á 109 Drops
|
|
|
| |
