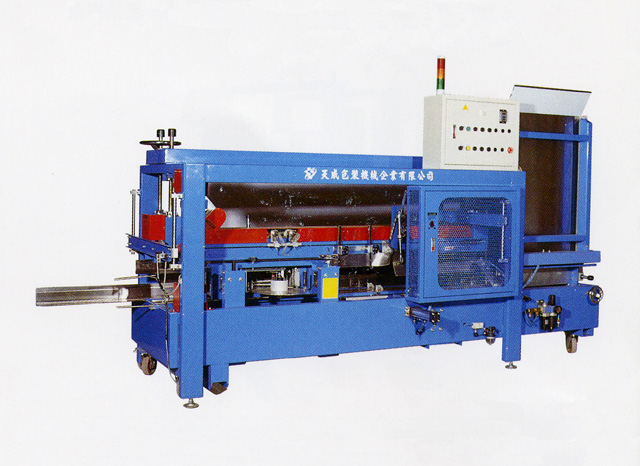

| Full Auto Erector & Sealer(Horizontal Type) TC-501T |
| |
 |
Content: |
|
|
Erect and forms carton; folds and seals bottom flaps fully automatically.
Horizontal filling magazing design. delivers and feeds flat unfolded cartons consistently.
User friendly and easy to adjust handle for cartons of various specifications.
Custom Design Available.
Power Supply 110/220V , 50/60Hz , 1Phase
Carton Size L120~600 , W150~500 , H150~500 mm
Sealing Capacity 6~12 Cases/Min
Tape Width 2"(2 1/2" , 3" Optional)
Table Height 630mm (Adjustable Range 600~700mm)
Air pressurec 5 kg/cm2
Weight 500 kgs
Size L3100 x W1050 x H1800 mm |
|
|
| |
