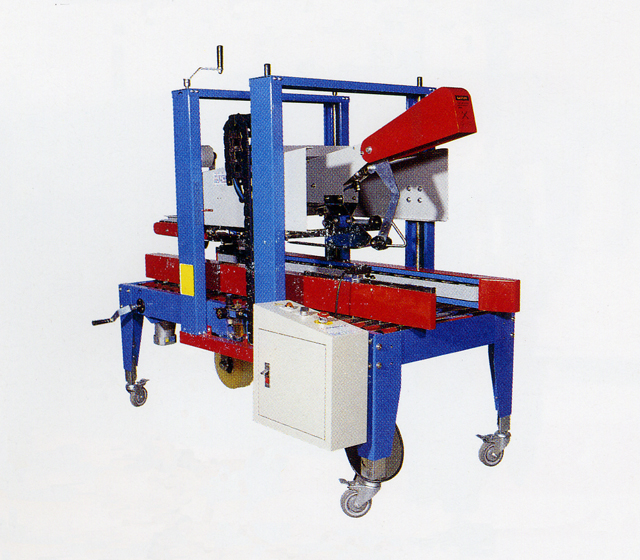

| Top Flap Folder & Carton SealerTC-301FB |
| |
 |
Content: |
|
|
Automatically folds top, bottom and side flaps speedily and smoothly
Driven by 4 sets os belts: top, bottom and sides.
Adopts pneumatic pressure to fold side flaps, which makes folding easier.
Easy to operate, standard components available.
Custom Design Available.
Power Supply 110/220V , 50/60Hz , 1Phase
Carton Size L200~600 , W150~500 , H150~500 mm
Sealing Capacity 1~15 Cases/Min
Tape Width 2"(2 1/2" , 3" Optional)
Table Height 630mm (Adjustable Range 600~700mm)
Air pressure 5 kg/cm2
Weight 260kgs
Size L1680 x W810 x H1640 mm
|
|
|
| |
