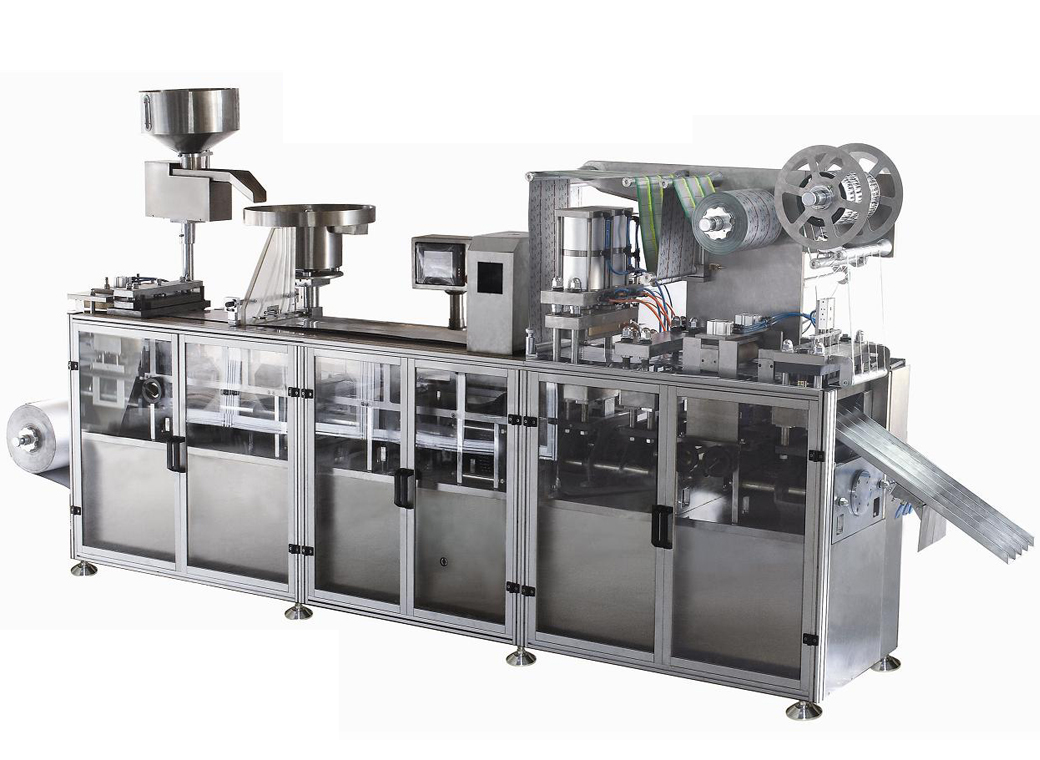

| DPP-250EI AL-AL/AL-PVC Blister Packing Machine |
| |
 |
Content: |
|
|
1.Compact and simple structure
2.Stainless steel Construction
3.Conform to GMP standards
4.Auto Feeding
5.Automatic rejection of blisters
6.Can work with multi-plicate packaging materials
7.CE certified
OPTIONALS
1.Print registration
2.Servo Motion
3.Vision inspection system
4.ALU micropore detector
5.Can be connected to a cartoner
Max operation speed Thermo Forming: up to 50 cycles/min
Cold Forming: up to 35 cycles/min
Format Range Effecive Index width: Max.110 * 240mm
Depth: Max.12mm
Width of Forming film: Max.250mm
Width of Lidding Material: Max. 250mm
Packaging Material Forming Mterial: PVC, PVC/PVDC, PVC/ACLAR, COC, PP, PET,Alu forming material, etc.
Lidding Materiial: Alu-hard or soft Alu/paper, PP etc Heat- sealable lacquered material
Dimension 4200 * 650 * 1700 mm (L * W * H)
Weight 1800Kg
Electric Power Conection 380V 50Hz 5.5Kw (Three-Phase Four-Wires)
Compressed Air Pressure 0.5-0.7Mpa
Air Consumption 150NL/min
|
|
|
| |
