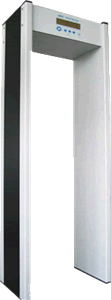

| Walk Through Metal Detector SD-100 |
| |
 |
Content: |
|
|
SD-100
FEATURES
1.Improved digital and analog mixed circuit,hi stability.
2.6 detection zone,the sensitivity of every zone can be adjusted individually.
3.The real-time sensitivity of every zone can be displayed together during detecting.
4.Optimized detection system,eliminate non-uniform detection,anti-interference.
5.Several metal detector can be parallel working together.
6.LED matrix display,easy to read.
7.Functional operation system,cascading menu,easy to use.
8.Designed for universal AC power supply (full range).
PURPOSE
Airports,Entertainment Venues,Loss Prevention.
Prisons,mints,mine,Financial Institutions,Hospitals.
Courthouses,Manufacturing Facilities,Power Plants.
Electronics Industry,Jewelry Manufacturing¡
SPECIFICATIONS
Model SD-100
Detection method electric induction
Operation frequency 5-10KHz
Sensitivity adjustment 99 steps per zone
Alarm Buzzer
Dimension 2000mm(L)*660(H)
Power AC100-240V 50-60HZ
Rated ource Appr30W
Dimension 2200mm(L)*800mm(W)*500mm(H)
Weight Appr100Kg
|
|
|
| |
