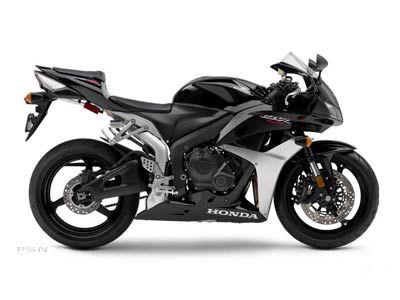

2007 Honda CBR600RR
POWERTRAIN
Engine Liquid-cooled inline 4-cylinder, DOHC; 4 valves per cylinder
Displacement 599 cc
Bore x Stroke 67 x 42. 5 mm
Compression Ratio 12. 2: 1
DRIVETRAIN
Carburetion Stage Fuel Injection (DSFI)
Ignition Computer-controlled digital transistorized with 3-dimensional mapping
Transmission Close-ratio 6-speed
Final Drive# 525 O-ring-sealed chain
DIMENSIONS
Seat Height 32. 3 in.
Fuel Capacity 4. 8 gal. Including 0. 9 gal. Reserve
Suspension
Front: 41 mm inverted HMAS cartridge fork with spring-preload, rebound & compression-damping adjustability; 4. 7 in. Travel
Rear: Unit Pro-Link HMAS single shock with spring-preload, rebound & compression-damping adjustability; 5. 1 in. Travel
Brakes
Front: Dual radial-mounted 4-piston calipers with 310 mm discs
Rear: Single 220 mm disc
Tires
Front: 120 / 70ZR-17 radial
Rear: 180 / 55ZR-17 radial
Rake 23. 7
Trail 3. 8 in. (96. 3 mm)
FACTORY WARRANTY INFORMATION
- 1 year Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan
US$ 4,100.00 |
|
|
| |
