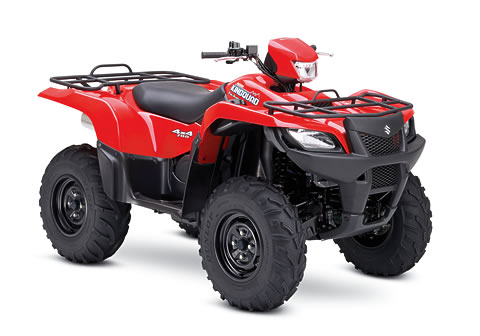

| Suzuki LT-A700X Kingquad |
| |
 |
Content: |
|
|
DIMENSIONS AND WEIGHTS
Overall length: 2120mm (83. 5in)
Overall width: 1210mm (47. 6in)
Overall height: 1220mm (48in)
Wheelbase: 1280mm (50. 4in)
Seat height: 860mm (33. 9in)
Dry Mass: 273kg (601. 9lbs)
Fuel capacity: 17. 5litres (3. 8gallons)
ENGINE SPECIFICATIONS
Engine capacity: 695cc
Engine: 4-stroke, Liquid cooled, Single cylinder DOHC
Bore: 102 x 85mm
Compression ratio: 10. 0: 1
Ignition: Electronic ignition (CDI)
Fuel system: Fuel injection system
Starter: Electric & Recoil
Transmission: Automatic x 2 speed with reverse & front diff-locked 4WD
Drive: Shaft
CHASSIS SPECIFICATION
Front suspension: Independent, double wishbone, oil damped. Spring preloaded, 5 way adjustable
Rear suspension: Independent, double wishbone, oil damped. Spring preloaded, 5 way adjustable.
Front brakes: Twin disc, hydraulically operated
Rear brakes: Sealed oil-bathed multi-plate
Front tyres: AT25 x 8 - 12 tubeless
Rear tyres: AT25 x 10 - 12 tubeless
US$ 5, 880. 00 |
|
|
| |
| 2014/4/22 |
| |
 |
