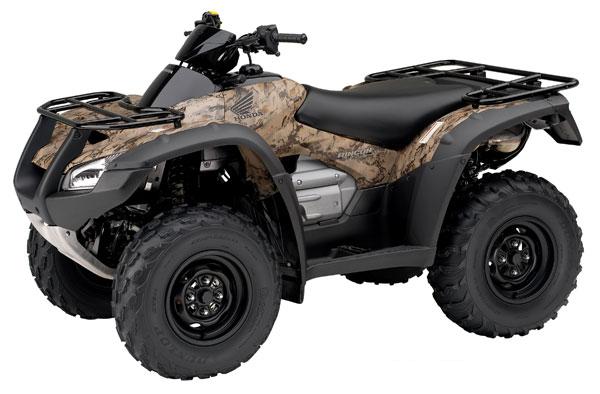

| 2007 Honda FourTrax Rincon TRX680FGA |
| |
 |
Content: |
|
|
Specifications:
Model: TRX680FGA with GPS
Engine Type: 675cc liquid-cooled OHV semi-dry-sump longitudinally mounted single-cylinder four-stroke
Bore and Stroke: 102.0mm x 82.6mm
Carburetion: Electronic fuel injection (PGM-FI) with Idle Air Control Valve (IACV) idle control
Ignition: Full-transistorized type with electronic advance
Starter: Electric with auxiliary recoil
Transmission: Automatic with hydraulic torque converter, three forward gears, reverse and electronic controls
Driveline: Direct front and rear driveshafts with torque-sensitive front differential
Suspension
Front: Independent double-wishbone; 6.9 inches travel
Rear: Independent double-wishbone; 8.0 inches travel
Brakes:
Front: Dual hydraulic 180mm disc
Rear: Single hydraulic disc
Tires:
Front: 25 x 8-12 radial
Rear: 25 x 10-12 radial
Length: 83.2 inches
Width: 46.8 inches
Height: 47.5 inches
Seat Height: 34.5 inches
Ground Clearance: 10.0 inches
Wheelbase: 50.8 inches
Dry Weight: 600 pounds
Fuel Capacity: 4.5 gallons, including 1.08-gallon reserve
Colors: Red, Olive, NaturalGear Camouflage
US$ 4,900.00 |
|
|
| |
