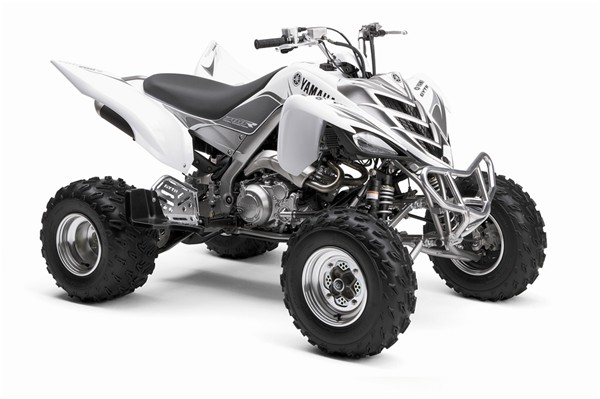

| 2007 YAMAHA Raptor 700R GYTR Edition |
| |
 |
Content: |
|
|
Engine
Type 686cc liquid-cooled, SOHC 4-stroke single w/fan, 4-valve
Bore x Stroke 102mm x 84mm
Compression Ratio 9. 2: 1
Carburetion Yamaha Fuel Injection (YFI), 44mm
Ignition Digital TCI w/16-Bit ECU
Starting System Electric
Transmission 5-Speed manual clutch w/reverse
Drive Train 2WD; Sealed o-ring chain, eccentric adjustment
Chassis
Suspension/Front Independent double wishbone, 9. 1" travel w/piggy back with back high/low speed compression, rebound and threaded preload adjustment
Suspension/Rear Cast aluminum swingarm, 10. 1" travel w/piggy back with high/low speed compression, rebound and threaded preload adjustment
Brakes/Front Dual ventilated hydraulic discs, twin pistons
Brakes/Rear Ventilated hydraulic disc, self adjusting park brake function
Tires/Front AT21x7-10 radial
Tires/Rear AT20x10-9 radial
Dimensions
L x W x H 72. 6" x 46. 1" x 44. 5"
Seat Height 32"
Wheelbase 50. 4"
Ground Clearance 4. 4"
Fuel Capacity 2. 9 gal.
Dry Weight 396 lb.
Other
Lighting Dual 30W Krypton multireflector headlights & 3. 9/0. 5W brake light
Warranty 6 Month (Limited Factory Warranty)
US$ 3, 980. 00 |
|
|
| |
